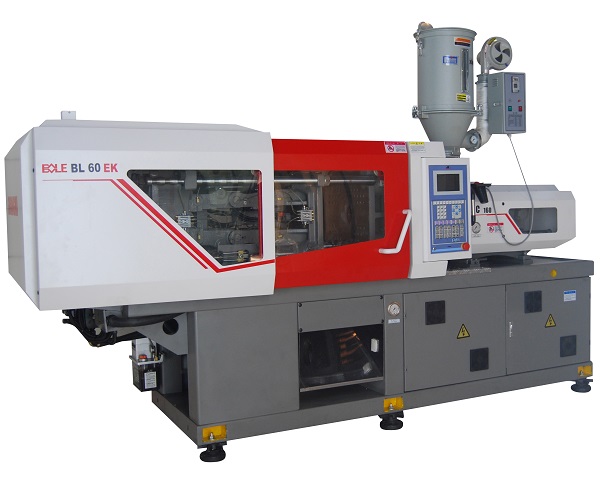

BL60EK
|
| |
|
|
|
|
|
| DESCRIPTION | UNIT | BL60EK | | International specification | 160/600 | | Screw diameter | | A | B | C | | mm | 25 | 28 | 32 | | Screw ratio | | 23 | 20 | 18 | | Theoretical injection capacity | cm3 | 71 | 89 | 117 | | Shot weight(PS) | g | 65 | 82 | 107 | | oz | 2.3 | 2.9 | 3.8 | | Injection rate into Air | cm^3/s | 62 | 78 | 102 | | Injection pressure | MPa | 225 | 180 | 138 | | Injection stroke | mm | 145 | | Max. injection speed | mm/s | 126 | | Max. Screw speed | r/min | 263 | | Clamping force | kN | 600 | | Opening stroke | mm | 320 | | Space between tie bar | mm×mm | 360×330 | | Min. mould height(T-slot) | mm | 140(105) | | Max. mould height(T-slot) | mm | 340(305) | | Max. distance Platen(T-slot) | mm | 660(625) | | Ejector stroke | mm | 70 | | Ejector force forward | kN | 31 | | Ejector force back | kN | 20 | | Number of ejector bar | PC | 5 | | Sys. Pressure | MPa | 16 | | Pump Motor | kW | 9 | | Heater power | kW | 4.4 | | Number of temp. control zones | | 3+1 | | Hoper capacity | kg | 25 | | Oil tank capacity | L | 120 | | Machine dimensions(L×W×H) | m×m×m | 3.5×1.15×1.7 | | Machine weight | Ton | 2.4 |
